communication.h File Reference

Defines the PipeSlot and MessageRequest structures. More...

#include "../../include/kernel_pkg.h"
#include "../include/api.h"

Include dependency graph for communication.h:

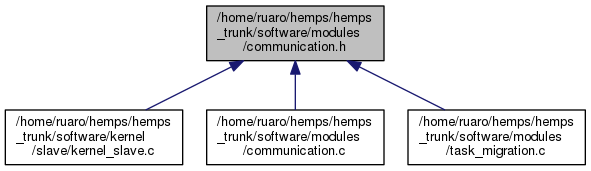

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	PipeSlot
	This structure store a task message (Message) in a kernel memory area called PIPE. More...
struct	MessageRequest
	This structure stores the message requests used to implement the blocking Receive MPI. More...

Macros
#define	PIPE_SIZE   MAX_LOCAL_TASKS * 3
#define	REQUEST_SIZE   MAX_LOCAL_TASKS*(MAX_TASKS_APP-1)
#define	MAX_TASK_SLOTS   PIPE_SIZE/MAX_LOCAL_TASKS
	Maximum number of pipe slots that a task have.

Enumerations
enum	PipeSlotStatus { EMPTY, LOCKED, USED }
	This enum stores the pipe status.

Functions
void	init_communication ()
int	add_PIPE (int, int, Message *)
unsigned int	search_PIPE_producer (int)
unsigned int	PIPE_msg_number ()
PipeSlot *	remove_PIPE (int, int)
PipeSlot *	get_PIPE_free_position ()
int	insert_message_request (int, int, int)
int	search_message_request (int, int)
int	remove_message_request (int, int)
int	remove_all_requested_msgs (int, unsigned int *)

Detailed Description

Defines the PipeSlot and MessageRequest structures.

HEMPS VERSION - 8.0 - support for RT applications

Distribution: June 2016

Created by: Marcelo Ruaro - contact: marce.nosp@m.lo.r.nosp@m.uaro@.nosp@m.acad.nosp@m..pucr.nosp@m.s.br

Research group: GAPH-PUCRS - contact: ferna.nosp@m.ndo..nosp@m.morae.nosp@m.s@pu.nosp@m.crs.b.nosp@m.r

PipeSlot stores the user's messages produced by not consumed yet. MessageRequest stores the requested messages send to the consumer task by not produced yet

Function Documentation

int add_PIPE	(	int	producer_task,
		int	consumer_task,
		Message *	msg
	)

Add a message to the PIPE if it have available space

Parameters

producer_task	ID of the producer task
consumer_task	ID of the consumer task
msg	Message pointer for the message to be stored

Returns

0 if pipe is full, 1 if the message was stored with success

PipeSlot* get_PIPE_free_position

(

)

Gets a pipe free position pointer

Returns

PipeSlot free position pointer

void init_communication

(

)

Initializes the message request and the pipe array

int insert_message_request	(	int	producer_task,
		int	consumer_task,
		int	requester_proc
	)

Inserts a message request into the message_request array

Parameters

producer_task	ID of the producer task of the message
consumer_task	ID of the consumer task of the message
requester_proc	Processor of the consumer task

Returns

0 if the message_request array is full, 1 if the message was successfully inserted

unsigned int PIPE_msg_number

(

)

Counts the number of message in the pipe

Returns

The number of messages in the pipe

int remove_all_requested_msgs	(	int	requested_task,
		unsigned int *	removed_msgs
	)

Remove all message request of a requested task ID and copies such messages to the removed_msgs array. This function is used for task migration only, when a task need to be moved to other processor

Parameters

requested_task	ID of the requested task
removed_msgs	array pointer of the removed messages

Returns

number of removed messages

int remove_message_request	(	int	producer_task,
		int	consumer_task
	)

Remove a message request

Parameters

producer_task	ID of the producer task of the message
consumer_task	ID of the consumer task of the message

Returns

-1 if the message was not found or the requester processor address (processor of the consumer task)

PipeSlot* remove_PIPE	(	int	producer_task,
		int	consumer_task
	)

Remove the next message from the pipe. The remotion occurs following the order of insertion of the message

Parameters

producer_task	ID of the producer task of the message
consumer_task	ID of the consumer task of the message

Returns

0 if it not found any message, or the PipeSlot pointer if the message was successfully removed

int search_message_request	(	int	producer_task,
		int	consumer_task
	)

Searches for a message request

Parameters

producer_task	ID of the producer task of the message
consumer_task	ID of the consumer task of the message

Returns

0 if the message was not found, 1 if the message was found

unsigned int search_PIPE_producer

(

int

producer_task

)

Tells if the producer task have some message in the pipe

Parameters

producer_task

ID of the producer task

Returns

0 if it not has, 1 if it has
